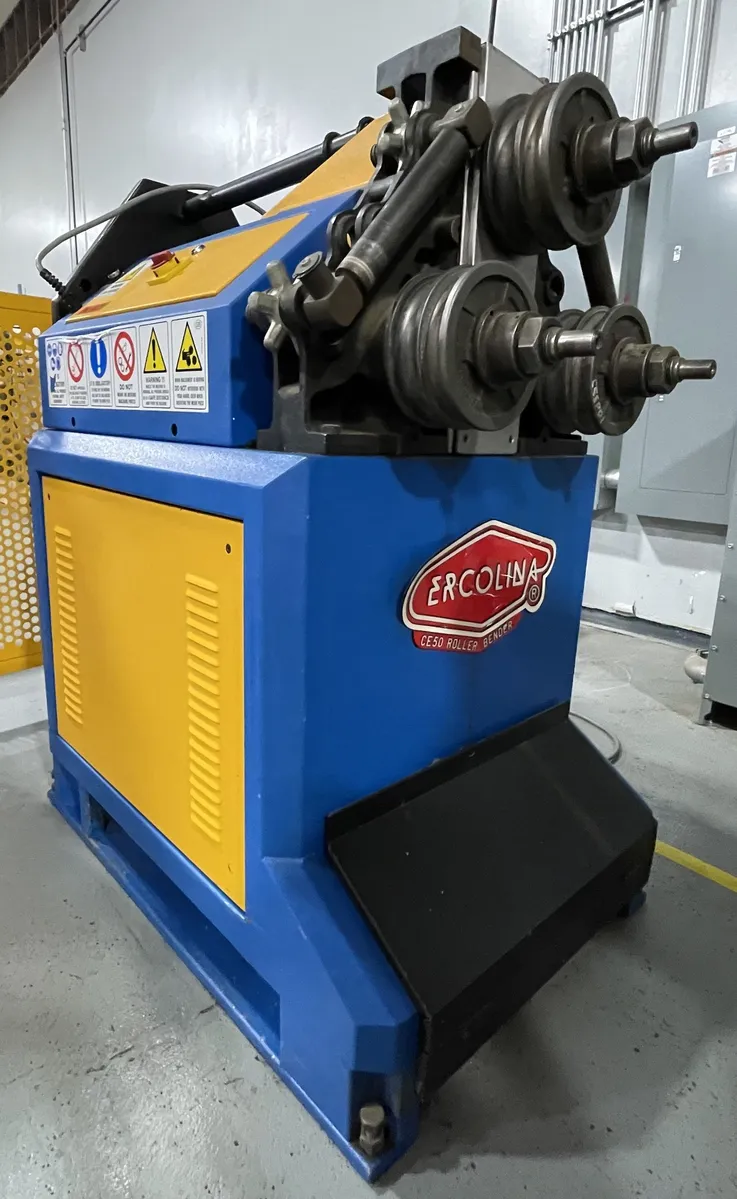

Used 2001 ERCOLINA CE50H3 | Angle Bending Rolls
Have one to sell?
ConditionUsed
1 available
Ercolina CE50H3 Hydraulic 3 drive rolls
Roll Shaft Diameter 50 mm
Standard Roll Diameter 178 mm
Max Center Roll Stroke 142 mm
Roll Shaft Speed 9 rpm / 9-18 rpm (mod. V2)
Independent Drive Rolls 3 smooth
Voltage 220 / 240 - 380 / 440 V
Motors 1,85 kW
Hydraulic Motor Power 1,50 kW
Machine Mainframe Cast iron GS500
Piston Force 100 000 N
Machine Operating Position Horizontal and Vertical
Setting of the upper roll I Hydraulic
Display Digital
Machine Body Construction Weldeld Steel
Number of Programs 8
Electric foot Pedal control Yes
Dimensions L x W x H 650 x 1270 x 1100 mm
Weight 430 Kg
Ercolina CE50H3 Hydraulic 3 drive rolls
Imperial
| Angle (L1) | 2" |
| Angle (L2) | 2" |
| Angle (T) | 1" |
| Pipe Capacity | 2.5" |
| (Init/Dbl Pinch or Pyramid) | INIT PINCH |
| Hyd/Mech | HYD |
| Operation (Horz, Vert, Horz/Vert) | HORZ/VERT |
| Power | 2.5 hp |
Roll Shaft Diameter 50 mm
Standard Roll Diameter 178 mm
Max Center Roll Stroke 142 mm
Roll Shaft Speed 9 rpm / 9-18 rpm (mod. V2)
Independent Drive Rolls 3 smooth
Voltage 220 / 240 - 380 / 440 V
Motors 1,85 kW
Hydraulic Motor Power 1,50 kW
Machine Mainframe Cast iron GS500
Piston Force 100 000 N
Machine Operating Position Horizontal and Vertical
Setting of the upper roll I Hydraulic
Display Digital
Machine Body Construction Weldeld Steel
Number of Programs 8
Electric foot Pedal control Yes
Dimensions L x W x H 650 x 1270 x 1100 mm
Weight 430 Kg
