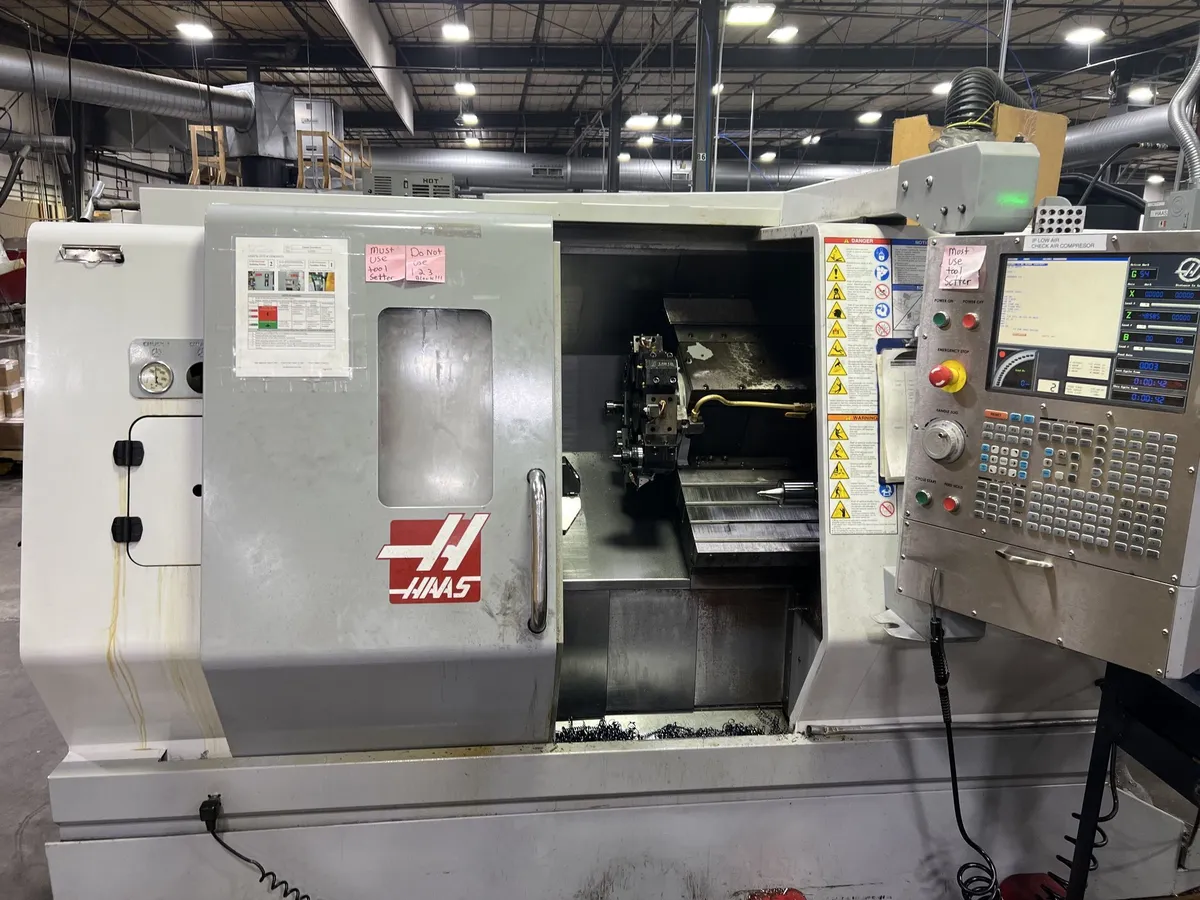

Used 2007 HAAS SL-20 | CNC LATHE(2AXIS)
Have one to sell?
ConditionUsed
1 available
Max Swing 23"
Max Turning Diameter 10.3"
Max Turning Length 20"
Distance Between Centers 24"
X-Axis Travel 8.45"
Z-Axis Travel 20"
Rapid Traverse Rates 710 IPM
Spindle Speed 4,000 RPM
Spindle Motor 20 HP
Spindle Bore 3"
Spindle Nose A2-6
Chuck Size 8"
Bar Capacity 2"
Turret VDI Type, 10 Position
Tailstock
Chip Conveyor
Intuitive Programming Systems
Rigid Tapping
*Specifications Subject to Buyer Verification.
Imperial
| Swing | 23" |
| Machining Length | 24" |
| Chuck Size | 8" |
| Bar Capacity | 2" |
| Power | 20 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 10.3" |
| Tailstock | Yes |
Max Swing 23"
Max Turning Diameter 10.3"
Max Turning Length 20"
Distance Between Centers 24"
X-Axis Travel 8.45"
Z-Axis Travel 20"
Rapid Traverse Rates 710 IPM
Spindle Speed 4,000 RPM
Spindle Motor 20 HP
Spindle Bore 3"
Spindle Nose A2-6
Chuck Size 8"
Bar Capacity 2"
Turret VDI Type, 10 Position
Tailstock
Chip Conveyor
Intuitive Programming Systems
Rigid Tapping
*Specifications Subject to Buyer Verification.
