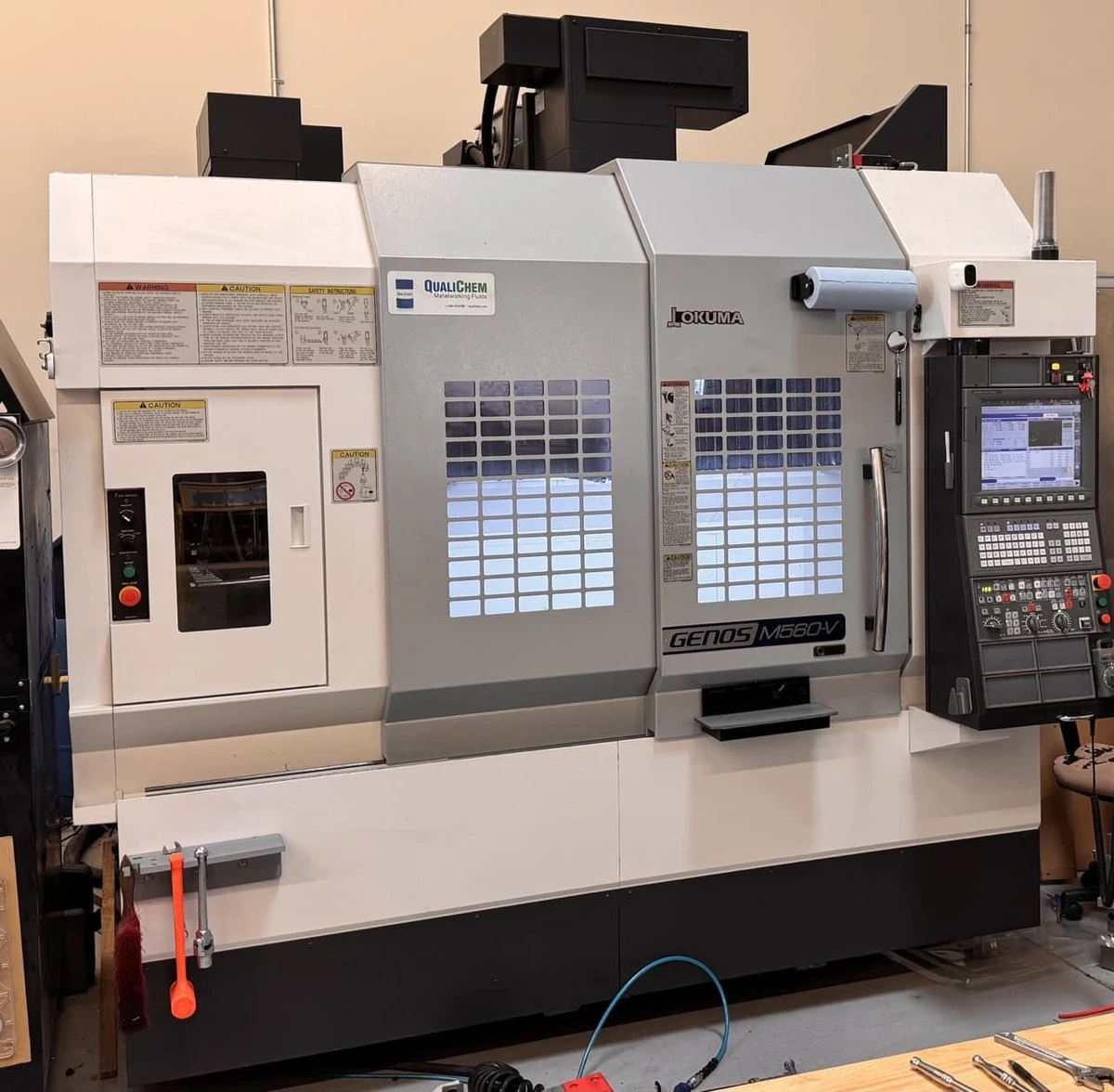

Used 2021 OKUMA GENOS M560-V | Vertical Machining Centers
Have one to sell?
ConditionUsed
1 available
2021 OKUMA GENOS M560-V for sale – high-speed CNC vertical machining center with 15,000 RPM spindle, Okuma OSP control, and rigid double-column design. View OKUMA GENOS M560-V price, specs, availability, and financing options. Request a quote today.
Travels
X axis (ram saddle horizontal) mm (in) 1,050 (41.34)
Y axis (table front/back) mm (in) 560 (22.05)
Z axis (spindle vertical) mm (in) 460 (18.11)
Table top to spindle nose mm (in) 150 to 610 (5.91 to 24.02)

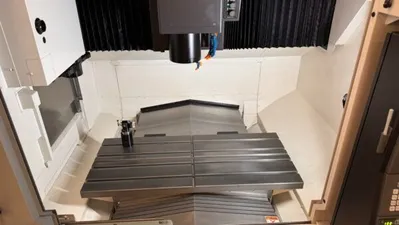

Table
Max work dimension mm (in) 1,300 x 560 (51.18 x 22.05)
Floor to table top mm (in) 800 (31.50
Max load capacity kg (lb) 900 (1,980)
Spindle
Max spindle speed min-1 15,000
Speed ranges Stepless
Tapered bore 7/24 taper No. 40
Bearing dia mm (in) ø70 (2.76)
Feedrate
Rapid traverse X-Y: 40, Z: 32 (X-Y: 1,575, Z: 1,260)
Cutting feedrate X-Y-Z: 32 (1,260)
Motors
Spindle (5 min/cont) kW (hp) 22/18.5 (30/25)
Feed axes kW (hp) X-Y-Z: 3.5 (4.7)
ATC
Tool shank CAT40 BIG-PLUS
Pull stud CAT
Tool capacity 32
Max tool dia (w/adjacent tool) mm (in) ø90 (3.54)
Max tool dia (w/o adjacent tool) mm (in) ø125 (4.92)
Max tool length mm (in) 300 (11.81)
Max tool weight kg (lb) 8 (18)
Max tool moment N-m (ft-lbf) 7.8 (5.7) <8 kg x 100 mm (17.6 lb x 3.94 in)
Tool selection Memory random
Machine Size
Height mm (in) 2,746 (108.11)
Floor space length x width mm (in) 2,564 x 3,194 (100.94 x 125.75
Weight kg (lb) 8,300 (18,260)

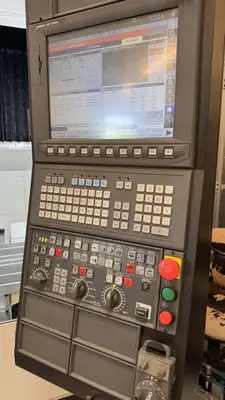

OSP-P300MA Control
Renishaw OMP400
Through Spindle Coolant Ready
*Specifications Subject to Buyer Verification.
2021 OKUMA GENOS M560-V for sale – high-speed CNC vertical machining center with 15,000 RPM spindle, Okuma OSP control, and rigid double-column design. View OKUMA GENOS M560-V price, specs, availability, and financing options. Request a quote today.
Looking for a 2021 OKUMA GENOS M560-V for sale? The 2021 Okuma GENOS M560-V CNC vertical machining center delivers high-speed precision, rigid double-column construction, and reliable performance for demanding machining applications. Equipped with a 15,000 RPM spindle, 32-tool ATC, and Okuma OSP control, this GENOS M560-V VMC is ideal for aerospace, automotive, medical, and general manufacturing.
This used 2021 OKUMA GENOS M560-V offers tight tolerances, excellent surface finishes, and proven Okuma durability. If you are searching for OKUMA GENOS M560-V price, specifications, availability, or financing, contact us today for a quote on this premium CNC machining center.
Imperial
| X | 41.34" |
| Y | 22.05" |
| Z | 18.11" |
| Power | 30 hp |
| RPM | 15,000 RPM |
| # ATC | 32 |
| Taper | #40 |
| Table-W | 2.015" |
| Table-L | 0.8681" |
| Control | CNC (OSP-P300MA) |
Travels
X axis (ram saddle horizontal) mm (in) 1,050 (41.34)
Y axis (table front/back) mm (in) 560 (22.05)
Z axis (spindle vertical) mm (in) 460 (18.11)
Table top to spindle nose mm (in) 150 to 610 (5.91 to 24.02)
Table
Max work dimension mm (in) 1,300 x 560 (51.18 x 22.05)
Floor to table top mm (in) 800 (31.50
Max load capacity kg (lb) 900 (1,980)
Spindle
Max spindle speed min-1 15,000
Speed ranges Stepless
Tapered bore 7/24 taper No. 40
Bearing dia mm (in) ø70 (2.76)
Feedrate
Rapid traverse X-Y: 40, Z: 32 (X-Y: 1,575, Z: 1,260)
Cutting feedrate X-Y-Z: 32 (1,260)
Motors
Spindle (5 min/cont) kW (hp) 22/18.5 (30/25)
Feed axes kW (hp) X-Y-Z: 3.5 (4.7)
ATC
Tool shank CAT40 BIG-PLUS
Pull stud CAT
Tool capacity 32
Max tool dia (w/adjacent tool) mm (in) ø90 (3.54)
Max tool dia (w/o adjacent tool) mm (in) ø125 (4.92)
Max tool length mm (in) 300 (11.81)
Max tool weight kg (lb) 8 (18)
Max tool moment N-m (ft-lbf) 7.8 (5.7) <8 kg x 100 mm (17.6 lb x 3.94 in)
Tool selection Memory random
Machine Size
Height mm (in) 2,746 (108.11)
Floor space length x width mm (in) 2,564 x 3,194 (100.94 x 125.75
Weight kg (lb) 8,300 (18,260)
OSP-P300MA Control
Renishaw OMP400
Through Spindle Coolant Ready
*Specifications Subject to Buyer Verification.
