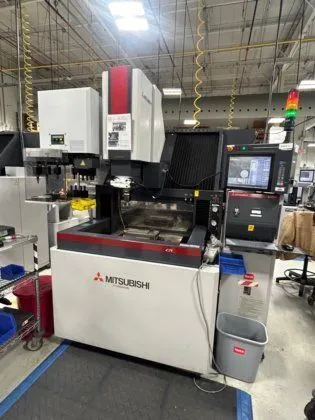

Used 2016 MITSUBISHI EA12V | EDM Sinkers
Have one to sell?
ConditionUsed
1 available
Maximize your precision with this 2016 Mitsubishi EA12V Sink EDM. Featuring the M700 control and advanced Fuzzy Logic for superior surface finishes, it’s ideal for high-accuracy mold making. Reliable, efficient, and ready for production.
Travel (X / Y / Z) in mm 400 / 300 / 300
Max. workpiece dimensions (W x D x H) in mm 850 x 640 x 250
Max. workpiece weight in kg 700
Max. electrode weight in kg 50
Table dimensions (W x D) in mm 700 x 500
Table layout Stainless steel table
Daylight (table – C-axis with EROWA chuck) in mm 152,5–452,5
Max. dielectric filling level 300
Overall dimensions with tool changer (W x D x H) in mm 2145 x 2050 x 2380
Machine weight in kg 3725
Mains voltage 3-phase 400 V/AC, 50/60 Hz
Filter system
Tank capacity in l 400
Filter particle size in µm / Filter elements 3 / 2
Temperature control Dielectric cooling unit
Generator
Power supply unit Transistor-controlled pulse generator
Cooling method Totally sealed / indirect air cooling
Max. output current in A 80
Dimensions (W x D x H) in mm 400 x 900 x 1763
Weight in kg 260 (bei 120 A: 300)
Control
Input method Keyboard, USB flash drive, Ethernet
TFT colour monitor / Control
system 15" touchscreen / CNC, closed circuit
Min. command step (X / Y / Z / U / V) in µm 0,1
Min. axis resolution in µm 0,1
Equipment
Dual position-measuring system with linear scales (X / Y / Z) Yes
Three-sided elevating work tank Yes
20-fold electrode changer Optional (not retrofittable)
Ethernet / DNC / FTP Yes
C-axis with EROWA chuck (1–30 rpm) Yes

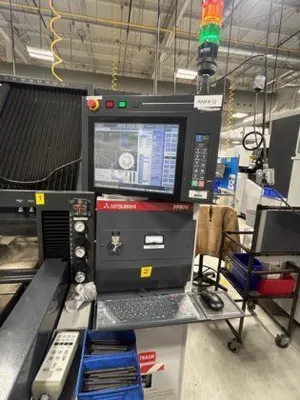

Mitsubishi 700 CNC Control
3 Sided Auto Drop Tank

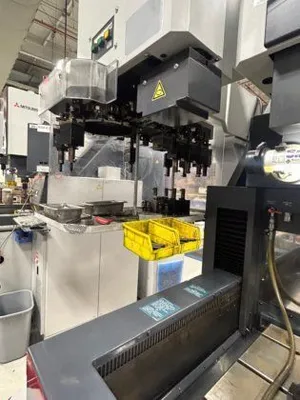

20 Position Tool Changer
C Axis 3R Macro Chuck
Remote Pendant
Chiller
*Specifications subject to buyer verification.
Maximize your precision with this 2016 Mitsubishi EA12V Sink EDM. Featuring the M700 control and advanced Fuzzy Logic for superior surface finishes, it’s ideal for high-accuracy mold making. Reliable, efficient, and ready for production.
Imperial
| Power Pack | 80 A |
| Table Size-W | 27.6" |
| Table Size-L | 23.6" |
| X | 15.75" |
| Y | 11.81" |
| Z | 11.81" |
Travel (X / Y / Z) in mm 400 / 300 / 300
Max. workpiece dimensions (W x D x H) in mm 850 x 640 x 250
Max. workpiece weight in kg 700
Max. electrode weight in kg 50
Table dimensions (W x D) in mm 700 x 500
Table layout Stainless steel table
Daylight (table – C-axis with EROWA chuck) in mm 152,5–452,5
Max. dielectric filling level 300
Overall dimensions with tool changer (W x D x H) in mm 2145 x 2050 x 2380
Machine weight in kg 3725
Mains voltage 3-phase 400 V/AC, 50/60 Hz
Filter system
Tank capacity in l 400
Filter particle size in µm / Filter elements 3 / 2
Temperature control Dielectric cooling unit
Generator
Power supply unit Transistor-controlled pulse generator
Cooling method Totally sealed / indirect air cooling
Max. output current in A 80
Dimensions (W x D x H) in mm 400 x 900 x 1763
Weight in kg 260 (bei 120 A: 300)
Control
Input method Keyboard, USB flash drive, Ethernet
TFT colour monitor / Control
system 15" touchscreen / CNC, closed circuit
Min. command step (X / Y / Z / U / V) in µm 0,1
Min. axis resolution in µm 0,1
Equipment
Dual position-measuring system with linear scales (X / Y / Z) Yes
Three-sided elevating work tank Yes
20-fold electrode changer Optional (not retrofittable)
Ethernet / DNC / FTP Yes
C-axis with EROWA chuck (1–30 rpm) Yes
Mitsubishi 700 CNC Control
3 Sided Auto Drop Tank
20 Position Tool Changer
C Axis 3R Macro Chuck
Remote Pendant
Chiller
*Specifications subject to buyer verification.
