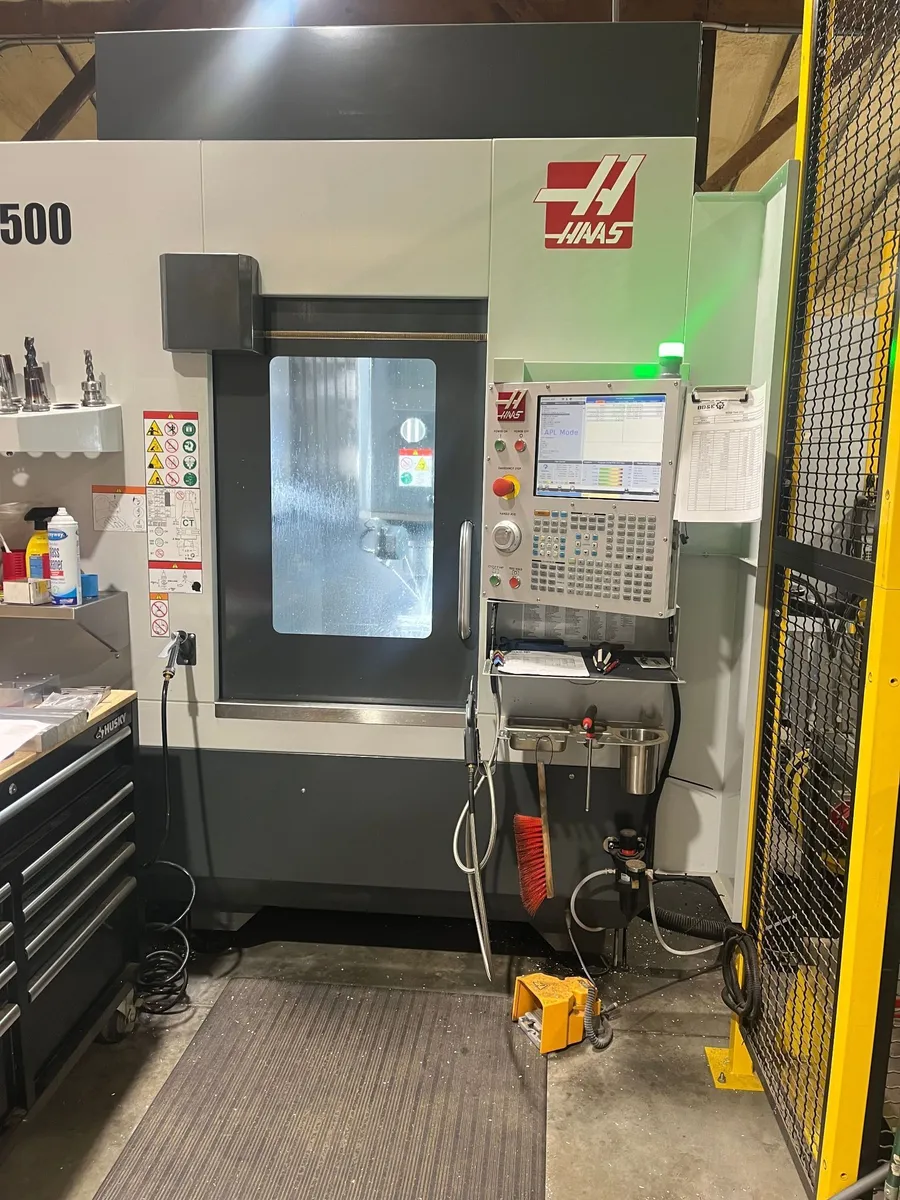

Used 2022 HAAS UMC-500 | VMC (5+ AXIS)
Have one to sell?
ConditionUsed
1 available
Boost productivity with the 2022 Haas UMC-500. Compact 5-axis VMC featuring 24" X / 16" Y / 16" Z travels, 15,000 RPM inline spindle, 40-taper, 30+1 side-mount ATC, and Robotics package for lights out machining.
Travels
X Axis 24.00 in 610 mm
Y Axis 16.00 in 406 mm
Z Axis 16.00 in 406 mm
Spindle Nose to Platter (~ max) 20.0 in 508 mm
Spindle Nose to Platter (~ min) 4.0 in 102 mm
Spindle
Max Rating 30.0 hp 22.4 kW
Max Speed 15000
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Drive System Inline Direct-Drive
Taper CT40
Bearing Lubrication Air / Oil Injection
Cooling Liquid Cooled
B Axis - Tilt
Travel 120 ° to 35- °
Max Speed 50 °/sec
Torque (Continuous) 1854 ft-lbf 2514 Nm
Brake Torque 900 ft-lbf 1220 Nm
C Axis - Rotation
Travel 360 °
Max Speed 50 °/sec
Torque (Continuous) 1854 ft-lbf 2514 Nm
Brake Torque 900 ft-lbf 1220 Nm
Max Part Swing 18.0 in 457 mm
Platter
Platter Diameter 15.70 in 400 mm
Max Weight on Platter 500 lb 226.8 kg
Max Weight on Platter w/Pallet Pool 200 lb 90.7 kg
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
Number of Std T-Slots 5 5
T-Slot Center Distance 2.48 in 63 mm
Feedrates
Max Cutting 650 ipm 16.5 m/min
Rapids on X 900 ipm 22.9 m/min
Rapids on Y 900 ipm 22.9 m/min
Rapids on Z 900 ipm 22.9 m/min
Axis Motors
Max Thrust X 3300 lbf 14680 N
Max Thrust Y 3300 lbf 14680 N
Max Thrust Z 4050 lbf 18015 N
Tool Changer
Type SMTC
Capacity 30+1
Max Tool Diameter (full)** 2.5 in 64 mm
Max Tool Diameter, Large (adjacent empty)** 5.0 in 127 mm
Max Tool Length (from gage line) 12.00 in 305 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 2.80 s
Chip-to-Chip (avg) 3.60 s
General
Coolant Capacity 55 gal 208 L
Air Requirements
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi 5.5 bar
15,000 RPM Spindle
Haas HRP2 (25kg) Robot Package With Perimeter Fence & Locking Sliding Door
WIPS
Wifi Camera
Programmable Coolant Nozzle
Through Spindle Coolant Ready
150MM Air Vice & 100MM Air Vice
Chip-Disk Filtration Chip Conveyor
95-Gal Coolant Tank
Auxiliary Coolant Filter
High Speed Machining
8 spare M functions
Auto Doors for Mills
Machine Anchoring Kit
*Specifications subject to buyer verification.
Boost productivity with the 2022 Haas UMC-500. Compact 5-axis VMC featuring 24" X / 16" Y / 16" Z travels, 15,000 RPM inline spindle, 40-taper, 30+1 side-mount ATC, and Robotics package for lights out machining.
The 2022 Haas UMC-500 delivers powerful 5-axis capability in a compact footprint, equipped with the Haas Robotics Package for automated part handling and lights-out production. Designed for high-mix, high-precision manufacturing, this versatile machining center is ideal for aerospace, medical, automotive, and precision job shop applications. The integrated automation system streamlines loading and unloading while maximizing spindle uptime and productivity.
Specifications
X-Axis Travel: 24" (610 mm)
Y-Axis Travel: 216" (406 mm)
Z-Axis Travel: 16" (406 mm)
B-Axis (Trunnion Tilt): 120° to 35-°
C-Axis Rotation: 360°
Table Size: 15.7" (400 mm) diameter
Max Table Load: 500 lbs (227 kg)
Spindle: 15,000 RPM Inline Direct Drive
Spindle Taper: CAT 40
Tool Changer: 30+1 Side-Mount ATC
Rapid Traverse: 900 IPM

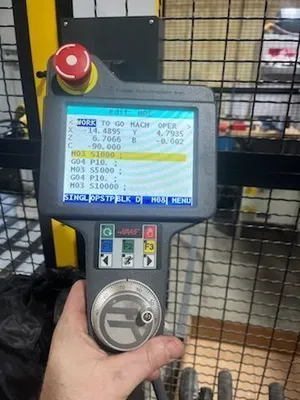

Control: Haas Next Generation Control
Automation / Robotics Package
Haas Robot Package integration
Automated part loading & unloading
Safety fencing and interface integration
Designed for unattended machining and lights-out production
Key Features
Simultaneous 5-axis machining capability
Compact footprint with large machining capacity
High-speed machining for complex parts
Ideal for aerospace, medical, defense, and precision manufacturing
Integrated robotic automation increases throughput and reduces labor costs
A highly sought-after configuration, the 2022 Haas UMC-500 with Robotics Package provides advanced 5-axis machining combined with efficient automation—perfect for shops looking to increase productivity and run unattended production.
Imperial
| X | 24" |
| Y | 16" |
| Z | 16" |
| # Axis | 5 |
| RPM | 15,000 RPM |
| # ATC | 301 |
| Taper | 40 |
| Control | CNC (Haas) |
Travels
X Axis 24.00 in 610 mm
Y Axis 16.00 in 406 mm
Z Axis 16.00 in 406 mm
Spindle Nose to Platter (~ max) 20.0 in 508 mm
Spindle Nose to Platter (~ min) 4.0 in 102 mm
Spindle
Max Rating 30.0 hp 22.4 kW
Max Speed 15000
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Drive System Inline Direct-Drive
Taper CT40
Bearing Lubrication Air / Oil Injection
Cooling Liquid Cooled
B Axis - Tilt
Travel 120 ° to 35- °
Max Speed 50 °/sec
Torque (Continuous) 1854 ft-lbf 2514 Nm
Brake Torque 900 ft-lbf 1220 Nm
C Axis - Rotation
Travel 360 °
Max Speed 50 °/sec
Torque (Continuous) 1854 ft-lbf 2514 Nm
Brake Torque 900 ft-lbf 1220 Nm
Max Part Swing 18.0 in 457 mm
Platter
Platter Diameter 15.70 in 400 mm
Max Weight on Platter 500 lb 226.8 kg
Max Weight on Platter w/Pallet Pool 200 lb 90.7 kg
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
Number of Std T-Slots 5 5
T-Slot Center Distance 2.48 in 63 mm
Feedrates
Max Cutting 650 ipm 16.5 m/min
Rapids on X 900 ipm 22.9 m/min
Rapids on Y 900 ipm 22.9 m/min
Rapids on Z 900 ipm 22.9 m/min
Axis Motors
Max Thrust X 3300 lbf 14680 N
Max Thrust Y 3300 lbf 14680 N
Max Thrust Z 4050 lbf 18015 N
Tool Changer
Type SMTC
Capacity 30+1
Max Tool Diameter (full)** 2.5 in 64 mm
Max Tool Diameter, Large (adjacent empty)** 5.0 in 127 mm
Max Tool Length (from gage line) 12.00 in 305 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 2.80 s
Chip-to-Chip (avg) 3.60 s
General
Coolant Capacity 55 gal 208 L
Air Requirements
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi 5.5 bar
15,000 RPM Spindle
Haas HRP2 (25kg) Robot Package With Perimeter Fence & Locking Sliding Door
WIPS
Wifi Camera
Programmable Coolant Nozzle
Through Spindle Coolant Ready
150MM Air Vice & 100MM Air Vice
Chip-Disk Filtration Chip Conveyor
95-Gal Coolant Tank
Auxiliary Coolant Filter
High Speed Machining
8 spare M functions
Auto Doors for Mills
Machine Anchoring Kit
*Specifications subject to buyer verification.
